Atlantis event display for ATLAS
Atlantis is an event display for the ATLAS experiment at CERN's Large Hadron Collider. The primary goals of the program are the visual investigation and the understanding of the physics of complete events. Secondary goals are to help develop reconstruction and analysis algorithms, to facilitate debugging during commisioning and to provided a tool for creating pictures and animations for publications, presentations and exhibitions.
Atlantis distributions are available here and install instructions here.
The source of documentation on Atlantis:
- quick introduction to Atlantis - the Atlantis Start-up Guide (V1.3, January 25, 2006) (PDF format, 0.9MB)
- online documentation (help in Atlantis itself) which is available after right click on most of the components in the Atlantis GUI (help window pops up), online help can be alternatively accessed via Help -> Online Help
- online documentation available in the PDF format
- Atlantis in the ATLAS Computing Workbook (Twiki page): Atlantis WorkBook
- Using Atlantis with AOD format files (Twiki page): AtlantisWithAOD
- Further ATLAS TWiki pages regarding Atlantis event display: Twiki search
- Atlantis talks listed by the CERN Indico meeting system

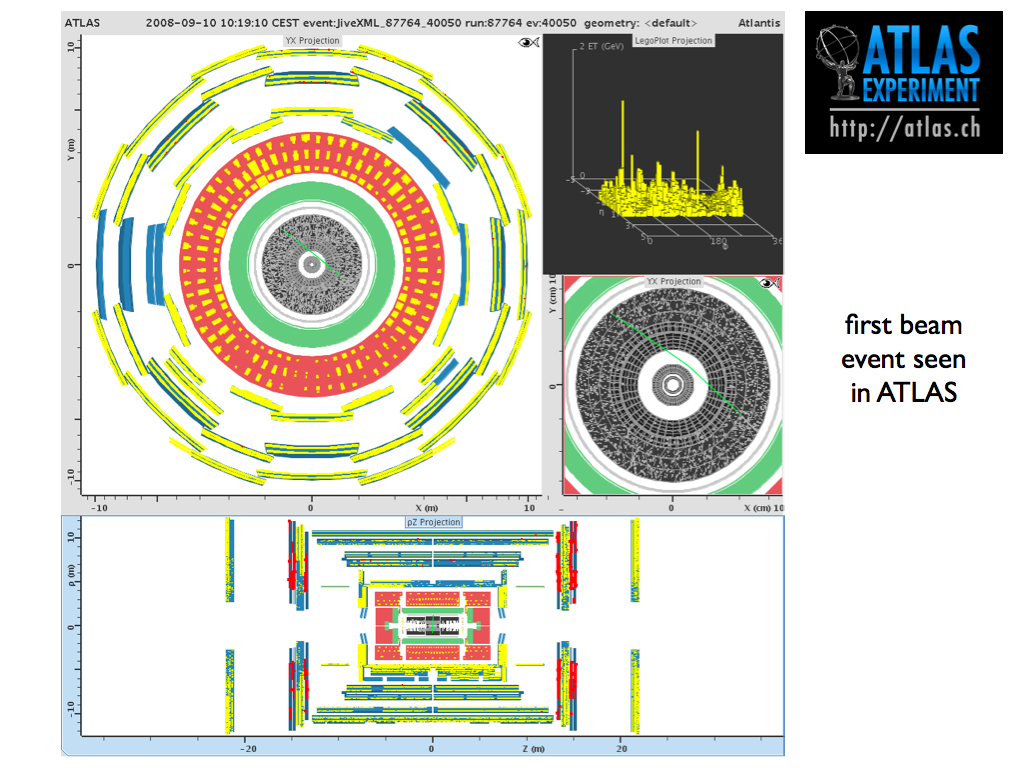

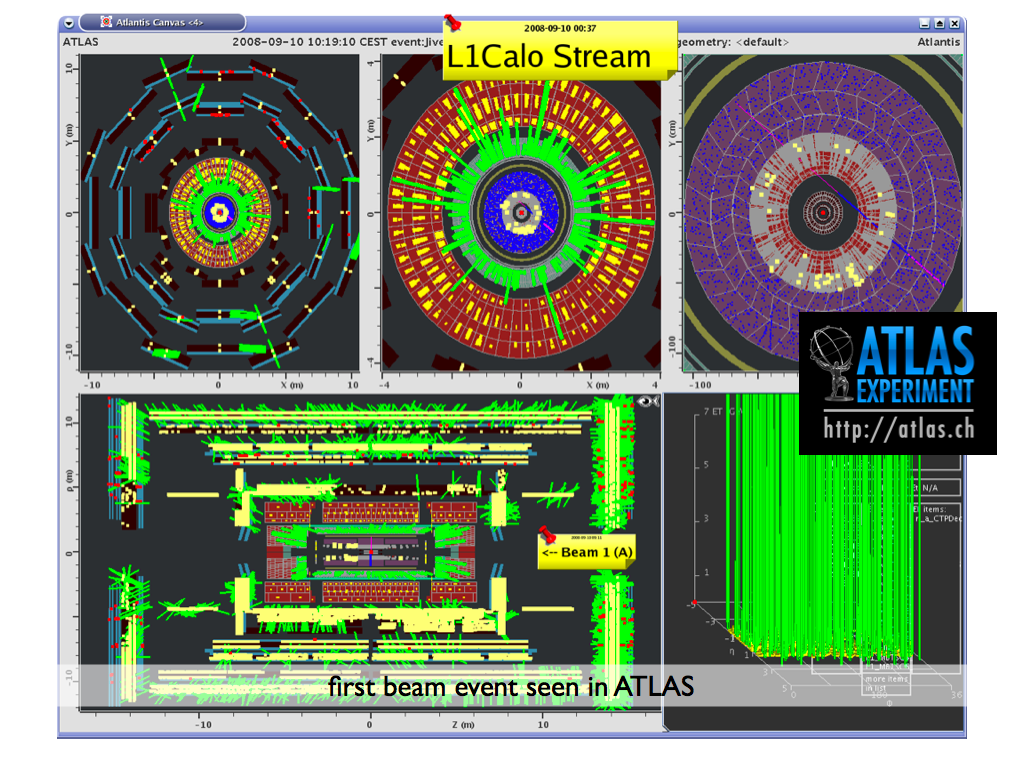

Screenshots: First beam event seen in ATLAS
